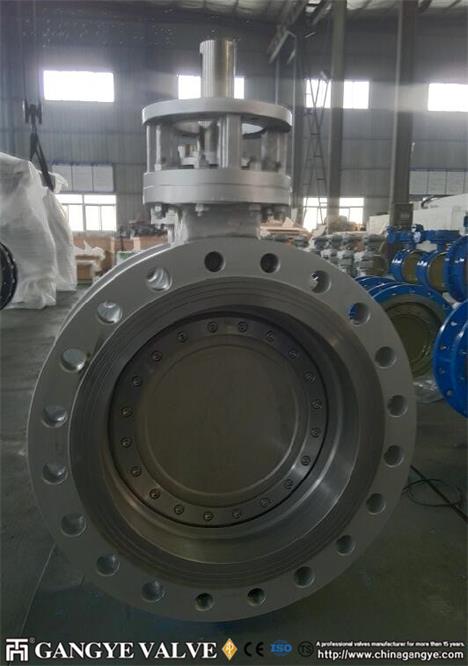

TRIPLE OFFSET BUTTERFLY VALVE, DOUBLE FLANGED RF, WCB/WCB/420SS/304SS+GRAPHITE, BARE STEM ,PN40 DN500 Product name   Three eccentric hard sealing flange butterfly valve Nominal diameter   DN 50-DN 3600 ( 2''- 144'') Nominal pressure   PN 6-PN 100  ( 86Lb - 600Lb ) Design standard   API 609 / EN593 (BS5155&DIN3354) Structure length   API 609 / EN558-1 Series 13 &14 (BS5155&DIN3202) Flange connection   ASME B16.5 B16.47 / EN1092-1  EN1092-2 Product features -Three eccentric butterfly board design -Excellent gas liquid [...]

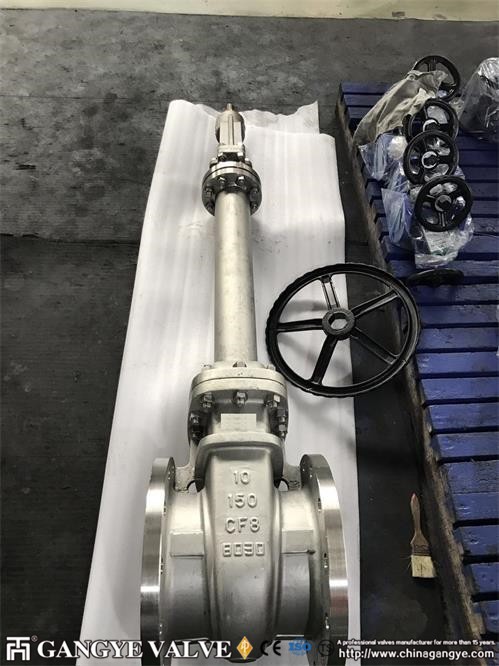

Bellows Sealed Gate Valve， API 600， FLG 150 LB R.F. (125-250 Ra)， Cast ASTM A351 GR.CF8， 304SS Trim，Flanged ends, bolted bonnet, OS&Y, flexible wedge,integral seat ring, Hot oil system, steam system, hot and cold water system etc. Advantage 1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage. 2.Double seal design(bellows+packing). Bellow and packing [...]

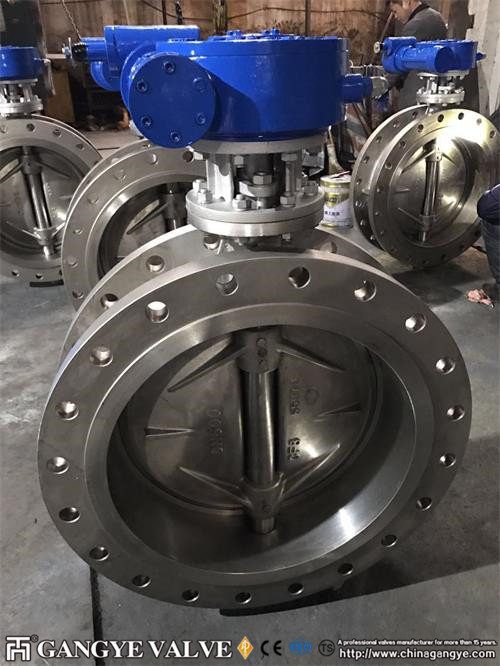

Triple offset butterfly valve double flanged, CF8/304SS, sealing ring:304ss+graphite, 150LB 6 "-24" Overview The Triple-eccentric design:shaft from the centerline of sealing surface to form the 1st eccentric;the shaft offsets from centerline of pipeline to form the 2nd eccentric;and the scalene cone form the 3rd eccentric.This design can make iffectively use of the cam effect,and completely [...]

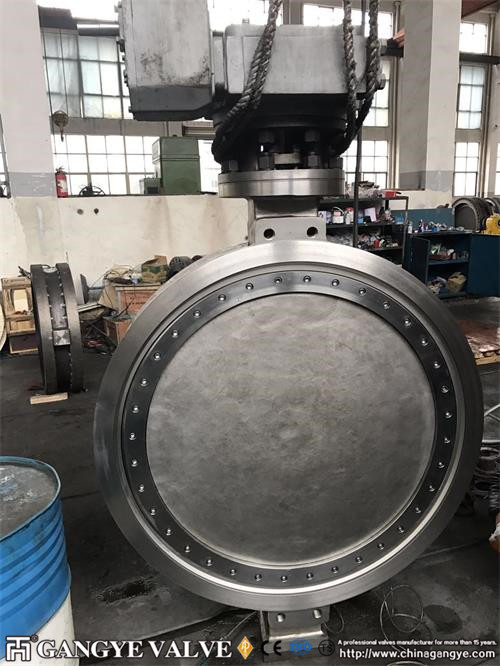

10K DN1200 Triple offset butterfly valve wafer type, body: CF8, disc: CF8, shaft: 17-4PH, sealing ring:304ss+graphite. Overview The Triple-eccentric design:shaft from the centerline of sealing surface to form the 1st eccentric;the shaft offsets from centerline of pipeline to form the 2nd eccentric;and the scalene cone form the 3rd eccentric.This design can make iffectively use of the cam effect,and completely eliminate the friction between the seat and sealing surface [...]

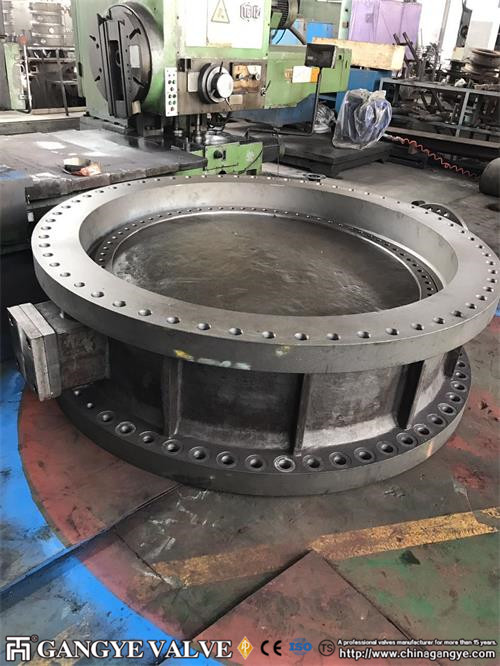

DN1800 TRIPLE OFFSET BUTTERFLY VALVE DOUBLE FLANGED FF, BODY:WCB, DISC: WCB, SHAFT:F6A, SEALING RING316SS+GRAPHITE, 150LB 72" DOUBLE FLANGED FF, BODY:WCB, DISC: WCB, SHAFT:F6A, SEALING RING316SS+GRAPHITE, 150LB 72" DOUBLE FLANGED FF, BODY:WCB, DISC: WCB, SHAFT:F6A, SEALING RING316SS+GRAPHITE, 150LB 72" DOUBLE FLANGED FF, BODY:WCB, DISC: WCB, SHAFT:F6A, SEALING RING316SS+GRAPHITE, 150LB 72" [...]

  WCB Pressure seal flanged type Tilting Disk Check Valve -Gangye Valve Design Specifications: Design: API 6D Wall thickness: API 6D, ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements [...]

JACKETED BUTTERFLY VALVE, BODY WCB, DISC CF8M, SHAFT 17-4PH, SEAT 13CR, 300LB 32" Overview The Triple-eccentric design:shaft from the centerline of sealing surface to form the 1st eccentric;the shaft offsets from centerline of pipeline to form the 2nd eccentric;and the scalene cone form the 3rd eccentric.This design can make iffectively use of the cam effect,and completely eliminate the friction between the seat and sealing surface in the [...]

Lined Lug Butterfly Valve Body: Cast iron, ductile iron（GGG25/GGG20/GGG50） Disc: Ductile iron (nickel coated), GGG25/GGG20/GGG50/aluminum bronze, stainless steel. Shaft: 416, 410,stainless steel. Sealing: NBR, EPDM or customized. Type Available: Wafer type Sizes Available: DN25mm to DN1200mm (1" to 48") Pressure Range: 150LB Materials Standard:API DIN and etc. Basic Design: API609, BS5155, EN593, MSS SP-67 Face [...]

3-PC body forged floating ball valve Floating ball valve, 3-pc body, body: A105, trim: F6A, seat: NYLON, full bore, lever operated,sw, 1500lb 1"      Esign Features: Nominal Size Range: NPS 1/2” ~ 14” Pressure Rating: Class 150LB - 2500LB Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Design Specifications: Design: API599 API6D Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding [...]
