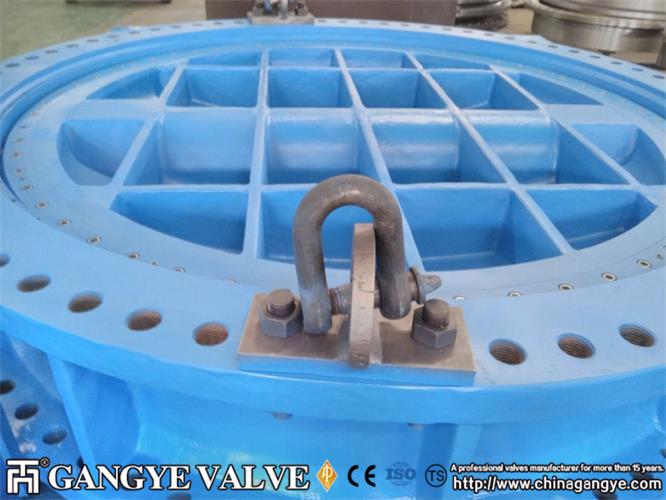

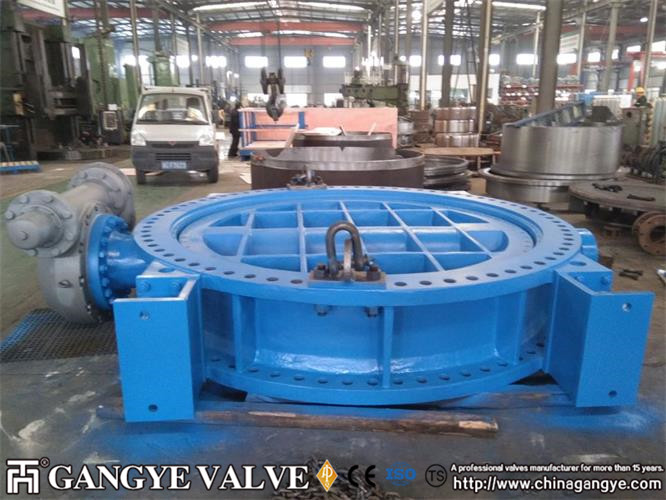

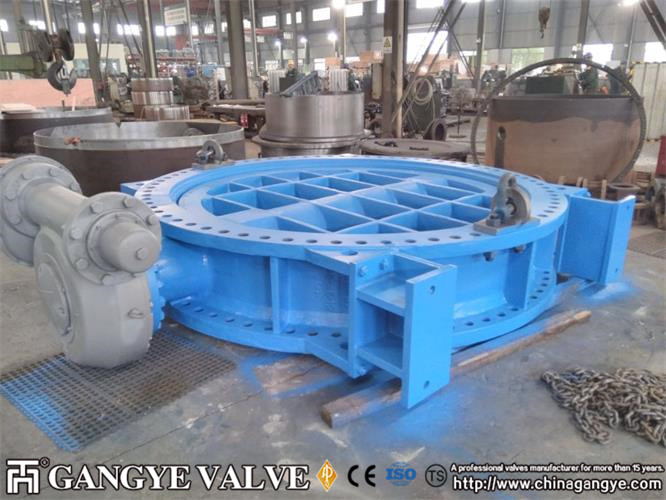

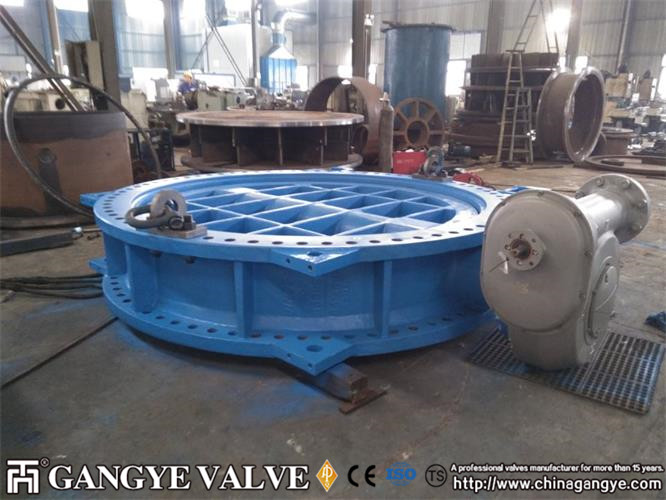

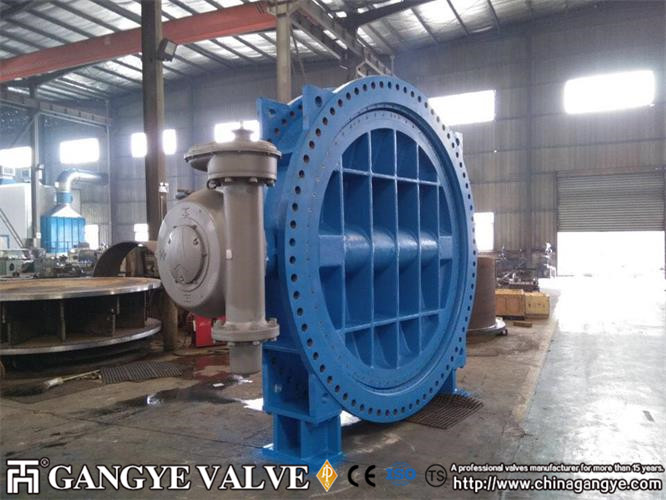

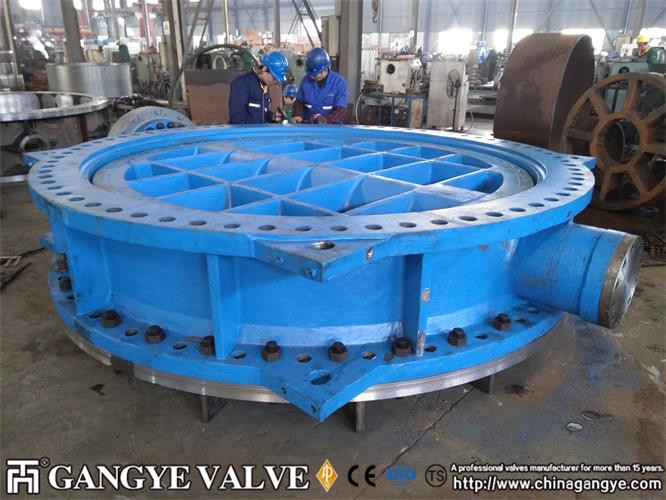

DN2600 High-Performance Lugged Butterfly Valve – Double Offset Design
AWWA C207 Class D Certified | 150 PSI WOG Rating | Superior Flow Control
Engineered for critical water distribution and industrial applications, our DN2600 lugged butterfly valve delivers unmatched durability with double-offset precision engineering – outperforming standard butterfly valves in leak prevention and service life.
Core Competitive Advantages
✅ Industry-Leading Construction
Body/Disc: ASTM A536 Grade 65-45-12 ductile iron (20% stronger than standard cast iron)
Corrosion-Resistant Shaft: 420 stainless steel with hardened surface treatment
Zero-Leak Guarantee: Triple-layered EPDM sealing ring (tested to 1,000 kPa / 145 PSI)
✅ Operational Excellence
Temperature range: -30°C to +120°C (-22°F to 248°F)
Full compliance with AWWA C207 Class D & EN 593 standards
30% faster installation vs. comparable lug-type valves
✅ Certified Reliability
ISO 9001:2015 certified manufacturing
10-year material warranty (industry standard: 5 years)
Third-party tested to API 609 protocols
Ideal Applications
▸ Municipal water treatment plants
▸ Fire protection systems (NFPA compliant)
▸ HVAC infrastructure in commercial complexes
▸ Chemical processing pipelines (EPDM compatible)
Why Engineers Specify Our Valves
“With 18% lower lifecycle costs than competitor models, our DN2600 maintains 99.6% leakage-free operation after 50,000 cycles in NSF/ANSI 61-certified testing.”
– John K., Lead Product Engineer
Technical Specifications Table (Mobile-Optimized)
Parameter Specification
Pressure Rating 150 PSI WOG / 1,000 kPa (Tested 1.5x)
End Connection AWWA C207 Class D Lugged
Shaft Design ISO 5211 Mounting Pad Standard
Actuation Ready Gearbox/Actuator Flange (ISO 5211)
CTA Section
Need a Valve That Outperforms Competitors?
☑️ Custom configurations for extreme media
☑️ 24/7 technical support
☑️ 2-year warranty with lifetime service
📞 Contact Our Engineers Now 📧 sales@chinagangye.com for a Free Application Analysis!
